Features
- .7mm mirror quality stainless steel face
- Includes hood to reduce glare
- Stainless Steel Backing
- Includes adjustable mounting bracket for flat surface.
- Includes clamp bracket for 35mm pole.
Suitable Uses
- Forklift Rear Vision
- Large Machinery Rear Vision
- Container Straddlers
- Mining Trucks
Specifications
International Product Codes
| Product Code | Size Diameter | View Distance | Mirror Face | Mirror Back | Bracket Length | Mounting Holes |
|---|---|---|---|---|---|---|
| 16336C | 320x225mm | Up to 10m | .7mm Stainless Steel | Stainless Steel | 160mm | 3 x 5mm |
Download PDF Information Guide View
Usage Guides
Positioning
Installation Guide
Fork Lift Stainless Steel Rectangle Mirror Assembly Guide:

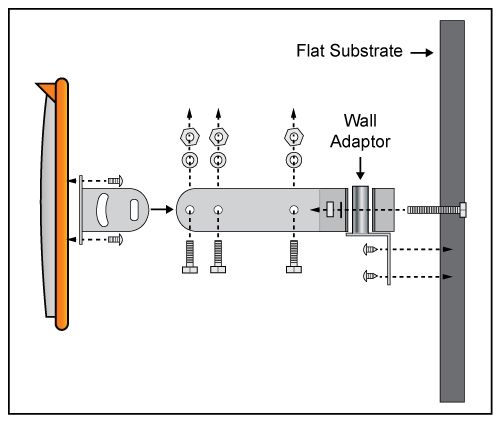

1. To attach to flat cab support, assemble wall mounting hardware as shown in the images below.

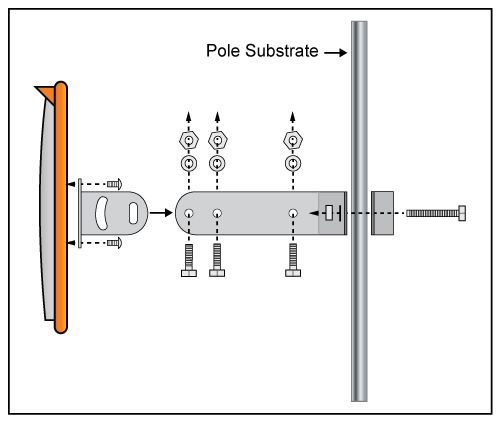

2. Or mount to 32mm pipe support using pole clamp bracket.

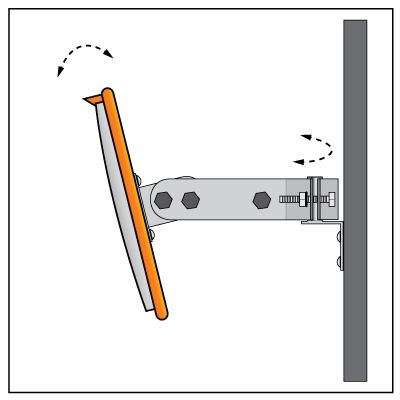

Angle and Position:
Download PDF Installation Guide View
Cleaning Guide
Stainless Steel Mirror Cleaning Guide:
General Cleaning:
DuraVision™ recommend cleaning their Stainless Steel Mirrors with soap and water and then with a soft, lint free, damp cloth.
DO NOT USE:
- abrasives
- acids
Polish:
DuraVision™ does not recommend using a commercial Stainless Steel Polish, as the protective layer will leave a residue on the highly polished mirror faces. Rubbing plain white flour on a dry stainless steel mirror face with a dry cloth will polish the mirror to its original brilliance.
Graffiti Removal:
Any graffiti should be removed from the mirror face as soon as possible and preferably within 24 hours with a suitable lacquer thinners. Not all graffiti cleaning agents are suitable. Failure to use an approved cleaning agent may damage the mirror surface.
Download PDF Cleaning Guide View
