Features
- 2mm or 3mm acrylic face
- Pure reflective coating
- Dome top screws for attaching to ceiling
- 90o viewing angle
- Low maintenance
Suitable Uses
- Retail and Security surveillance
- Safety in busy corridors
- Right angle passageways in buildings
- Reception areas
- Above high shelving for 90o observation
Specifications
International Product Codes
| Product Code | Size | View Distance | Mirror Face | Mirror Back | Bracket Length |
|---|---|---|---|---|---|
| 18541H | 600mm | Up to 3m | 2mm Acrylic | None | None |
| 18560H | 900mm | Up to 6m | 2mm Acrylic | None | None |
| 18563H | 1200mm | Up to 10m | 3mm Acrylic | None | None |
US Product Codes
| Product Code | Size | View Distance | Mirror Face | Mirror Back | Bracket Length |
|---|---|---|---|---|---|
| 68541H | 24" | Up to 20' | 2mm Acrylic | None | None |
| 68559H | 36" | Up to 30' | 2mm Acrylic | None | None |
Usage Guides
Positioning
Installation Guide
Indoor Quarter Dome Convex Mirror Installation Guide:
-
Decide the appropriate place to site the mirror to give maximum vision.
-
Dome capped screws are supplied for fixing directly to the corner ceiling.
-
After installation is complete, totally remove he protective film from the face.

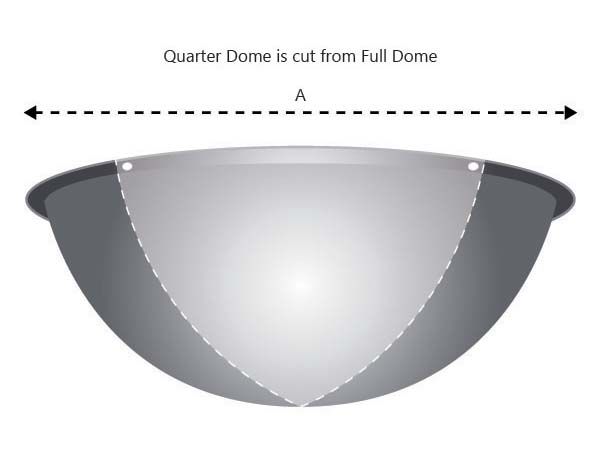

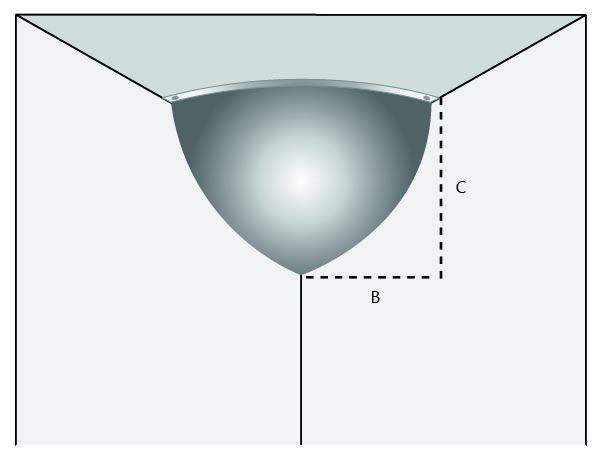

| Product Code | Dome Diametre (A) | Distance From Wall (B) | Distance From Ceiling (C) |
|---|---|---|---|
| 18541H | 600mm | 300mm | 230mm |
| 18560H | 900mm | 450mm | 340mm |
| 18563H | 1200mm | 600mm | 410mm |
Download PDF Installation Guide View
Cleaning Guide
Acrylic Mirror Cleaning Guide:
General Cleaning:
DuraVisionTM recommend cleanning their acrylic mirror faces with soap and water and then with a clean, soft, lint free, damp cloth. Use a non-abrasive polish, such as Johnson’s Pledge or Mr Sheen for a clear bright reflection.
Saturate a clean soft cloth with polish, then spray the mirror face with polish. Wipe the wetted cloth over the mirror surface. With a another clean dry cloth buff the mirror face until it is clear of polish.
DO NOT USE:
- abrasives
- acids
- solvents such as petrol and laquer thinners
Graffiti Removal:
Any graffiti should be removed from the mirror face as soon as possible and preferably within 24 hours. To remove graffiti, use a non-abrasive substance such as De-Solv-it Stain Remover. Not all graffiti cleaning agents are suitable. Failure to use an approved cleaning agent may damage the mirror surface.
Scratches:
To remove scratches or repair blemishes on acrylic mirror faces only, use the following products:
- For cleaning use NOVUS plastic polish #1
- For fine scratches use NOVUS plastic polish #2
- For badly scratched surfaces use NOVIS plastic polish #3 followed by #2 and #1.
Download PDF Cleaning Guide View
