Features

  • 2mm acrylic mirror face
  • Pure reflective coating
  • Cost effective
  • ACM Back
  • Easy to install

Suitable Uses

  • Retail and Store Security
  • Low Ceiling Areas
  • Compact Wall Space Areas
  • Office Security
  • Reception Areas
  • Visitor Detection
  • Other Indoor Observation Uses

Specifications

International Product Codes

Product Code Mirror Size  View Distance Mirror Face Mirror Back Mounting Hardware
18365FB 365x275mm Up to 6m 2mm Acrylic 4mm ACM 2 x Wall Screws
18367FB 525x335mm Up to 10m 2mm Acrylic 4mm ACM 2 x Wall  Screws

Download PDF Information Sheet  View

US Product Codes

Product Code Mirror Size  View Distance Mirror Face Mirror Back Mounting Hardware
68365FB 14"x11" Up to 20' 2mm Acrylic 4mm ACM 2 x Wall Screws
68367FB 20"x13" Up to 30' 2mm Acrylic 4mm ACM 2 x Wall Screws

Download PDF Information Sheet  View

Usage Guides

Positioning

flush fit mirror 1 flush fit mirror 2

Installation Guide

Indoor DeLuxe Flush Fit Mirror Installation Guide:

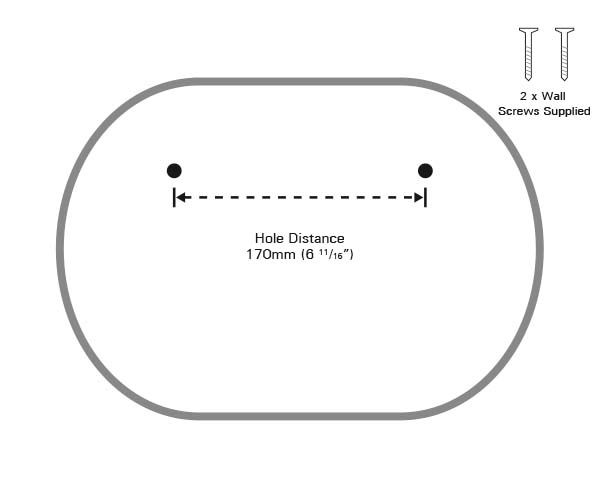

  1. Measure the distance between the two hole slots on the wall (170mm, 6 11/16").

  2. Fix the screws into the wall making sure they are level and protruding out from the wall approx 13mm (1/2").

  3. Slot the mirror onto the screws to hang.

  4. When the job is complete, totally remove the protective film from the face.

Flush Fit DeLuxe Assembly

Download PDF Installation Guide  View

Cleaning Guide

Acrylic Mirror Cleaning Guide:

General Cleaning:
DuraVisionTM recommend cleanning their acrylic mirror faces with soap and water and then with a clean, soft, lint free, damp cloth. Use a non-abrasive polish, such as Johnson’s Pledge or Mr Sheen for a clear bright reflection.

Saturate a clean soft cloth with polish, then spray the mirror face with polish. Wipe the wetted cloth over the mirror surface. With a another clean dry cloth buff the mirror face until it is clear of polish.

DO NOT USE:

  • abrasives
  • acids
  • solvents such as petrol and laquer thinners

Graffiti Removal:
Any graffiti should be removed from the mirror face as soon as possible and preferably within 24 hours. To remove graffiti, use a non-abrasive substance such as De-Solv-it Stain Remover. Not all graffiti cleaning agents are suitable. Failure to use an approved cleaning agent may damage the mirror surface.

Scratches:
To remove scratches or repair blemishes on acrylic mirror faces only, use the following products:

  • For cleaning use NOVUS plastic polish #1
  • For fine scratches use NOVUS plastic polish #2
  • For badly scratched surfaces use NOVIS plastic polish #3 followed by #2 and #1.

Download PDF Cleaning Guide  View
