Features

  • 2mm or 3mm acrylic face
  • Pure reflective coating
  • Dome top screws for attaching to ceiling
  • Suspension kit for hanging from high ceilings

Suitable Uses

  • Retail and Security
  • Office Cubicle Surveillance
  • Four-way intersections in buildings
  • Above high shelving and isles
  • Factory and warehouse crossroads

Specifications

International Product Codes

Product Code Size Diameter View Distance Mirror Face Mirror Back Mounting Hardware
18523H 450mm Up to 3m 2mm Acrylic None Suspension Kit and Screws
18585H 600mm Up to 6m 2mm Acrylic None Suspension Kit and Screws
18590H 900mm Up to 9m 2mm Acrylic None Suspension Kit and Screws
18596H 1200mm Up to 16m 3mm Acrylic None Suspension Kit and Screws

Download PDF Information Sheet  View

US Product Codes

Product Code Size Diameter View Distance Mirror Face Mirror Back Mounting Hardware
68542H 18" Up to 10' 2mm Acrylic None Suspension Kit and Screws
68584H 24" Up to 20' 2mm Acrylic None Suspension Kit and Screws
68589H 36" Up to 30' 2mm Acrylic None Suspension Kit and Screws
68599H 24" Up to 20' 2mm Acrylic with square flange None None

Download PDF Information Guide  View

Usage Guides

Positioning

ceiling dome 1 ciling dome 2

Installation Guide

Indoor Full Dome Convex Mirror Installation Guide:

  1. Decide the appropriate place to site the mirror to give maximum vision.

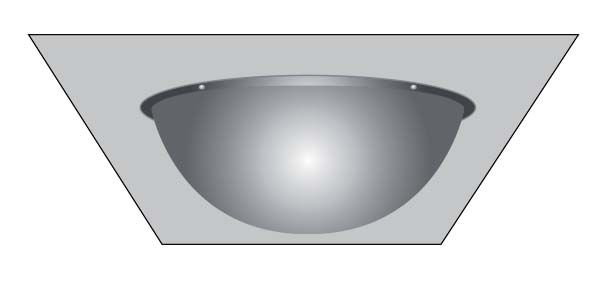

  2. Dome capped screws are supplied for fixing directly to the ceiling.

  3. After the job is complete, totally remove the protective film from the face.

Dome Fixed.jpg

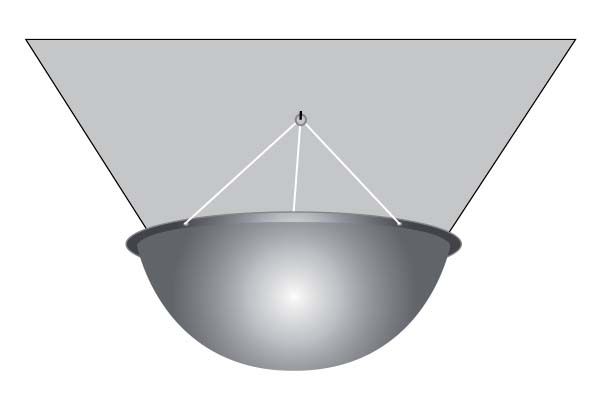

In the case of a high ceiling, a suspension kit is supplied to suspend to the ultimate height.

Space Saver 4.jpg

As an indication, the ultimate height from the floor to the bottom of the dome is:

Optimal Height Guide

Size Model (mm) Height (metres) Viewing Area (m2) Size Model (inch) Height (ft) Viewing Area (sq.ft.)
450mm 2.5m 15 - 20m2 18" 8' 162 - 215 ft2
600mm 2.5m 20 - 30m2 24" 8' 215 - 323 ft2
900mm 2.8m 30 - 40m2 36" 9' 323 - 431 ft2
1200mm 3.5m 45 - 55m2 47" 11' 484 - 595 ft2



Cleaning Guide

Acrylic Mirror Cleaning Guide:

General Cleaning:
DuraVisionTM recommend cleanning their acrylic mirror faces with soap and water and then with a clean, soft, lint free, damp cloth. Use a non-abrasive polish, such as Johnson’s Pledge or Mr Sheen for a clear bright reflection.

Saturate a clean soft cloth with polish, then spray the mirror face with polish. Wipe the wetted cloth over the mirror surface. With a another clean dry cloth buff the mirror face until it is clear of polish.

DO NOT USE:

  • abrasives
  • acids
  • solvents such as petrol and laquer thinners

Graffiti Removal:
Any graffiti should be removed from the mirror face as soon as possible and preferably within 24 hours. To remove graffiti, use a non-abrasive substance such as De-Solv-it Stain Remover. Not all graffiti cleaning agents are suitable. Failure to use an approved cleaning agent may damage the mirror surface.

Scratches:
To remove scratches or repair blemishes on acrylic mirror faces only, use the following products:

  • For cleaning use NOVUS plastic polish #1
  • For fine scratches use NOVUS plastic polish #2
  • For badly scratched surfaces use NOVIS plastic polish #3 followed by #2 and #1.

Download PDF Cleaning Guide  View
